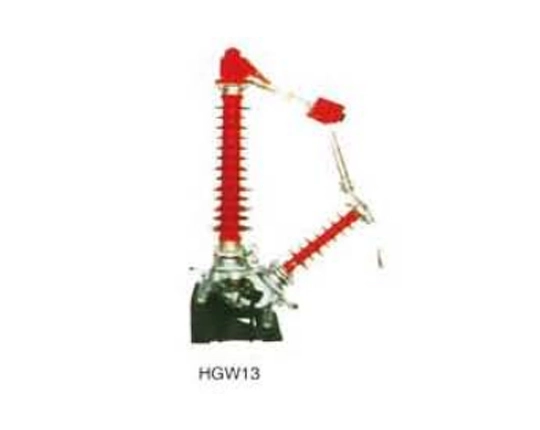

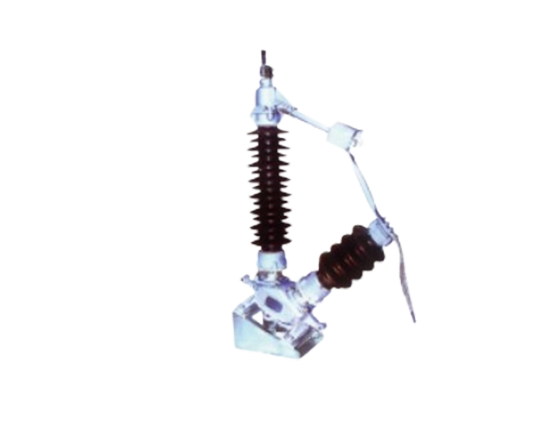

GW13 series is an outdoor high-voltage AC isolation switch designed specifically for AC 50Hz power systems. It is mainly used for opening and closing circuits under no-load conditions to achieve electrical isolation or transformer neutral point connection operation
Modular layout: Modular combination of brackets, bases, post insulators, and conductive parts, supporting inclined installation (such as 25 ° brackets).
The GW13 series isolation switch, with its high reliability, low maintenance requirements, and flexible adaptability, has become a key equipment for safe isolation in high-voltage power systems. The selection should be comprehensively evaluated based on voltage level, current capacity, and environmental conditions.
| Item | Unit | Technical data | |||
| Rated Voltage | kV | 40.5 | 72.5 | 126 | |
| Rated Current | A | 630~2000 | |||
| (4S)Rated short circuite current(4S) | kA | 20 | |||
| Rated current peak | kA | 50 | |||
| Rated short-time power frequency voltage(virtual value) | kV | 85 | 140 | 230 | |
| Rated ightning impulse voltage(peak value) | kV | 85 | 325 | 550 | |
| Rated terminal static mechanical load | Horizontal longitudinal | N | 750 | 750 | 1000 |
| Horizontal transverse | N | 500 | 500 | 750 | |
| Vertical | N | 500 | 500 | 1000 | |
| Mechanical life | Times | 3000 | |||
| Single phase weight | kg | 90 | 120 | 150 | |
| Electric-contro mechanism | Switching time | S | CJ6:7.5 CJ2-XG:6±1 | ||
| Weight | kg | 100 | |||
| Manual mechanism weight | kg | 20 | |||
Provide visible breakpoints to ensure maintenance safety.
Connect the neutral point of the transformer to optimize the operation mode of the power grid.
High voltage power grid: neutral point isolation in substations and power plants.
Distribution system: High voltage distribution circuit 68 for new energy projects such as wind power and photovoltaics.
Industrial enterprises: Power isolation and protection for heavy equipment.
High prototype: Suitable for environments below an altitude of 3000m.
Anti pollution type: Enhanced insulation design, suitable for high pollution areas.
